A gasket-mounted board with PE foam between the plate and PCB sounds, out of the box, about 8 to 12 dB quieter at 40 cm than the same board without it. That is a real number from my bench, not a vibe. The trick is the foam has to be the right foam, cut to the right shape, and you have to know when not to bother. Some boards need the mod. A few get worse.
Below is the field-test walkthrough: what the tape mod and foam mod actually do, which boards deserve the surgery, and the products I reach for when I do it. Nothing in here is group-buy-only. Everything ships today.
Scrapbook Adhesives by 3L, Crafty Foam Tape, White, 4m x 13-Feet
Pre-cut foam sheets, switch tape, and a layout stencil in one box
Visit on Amazon →

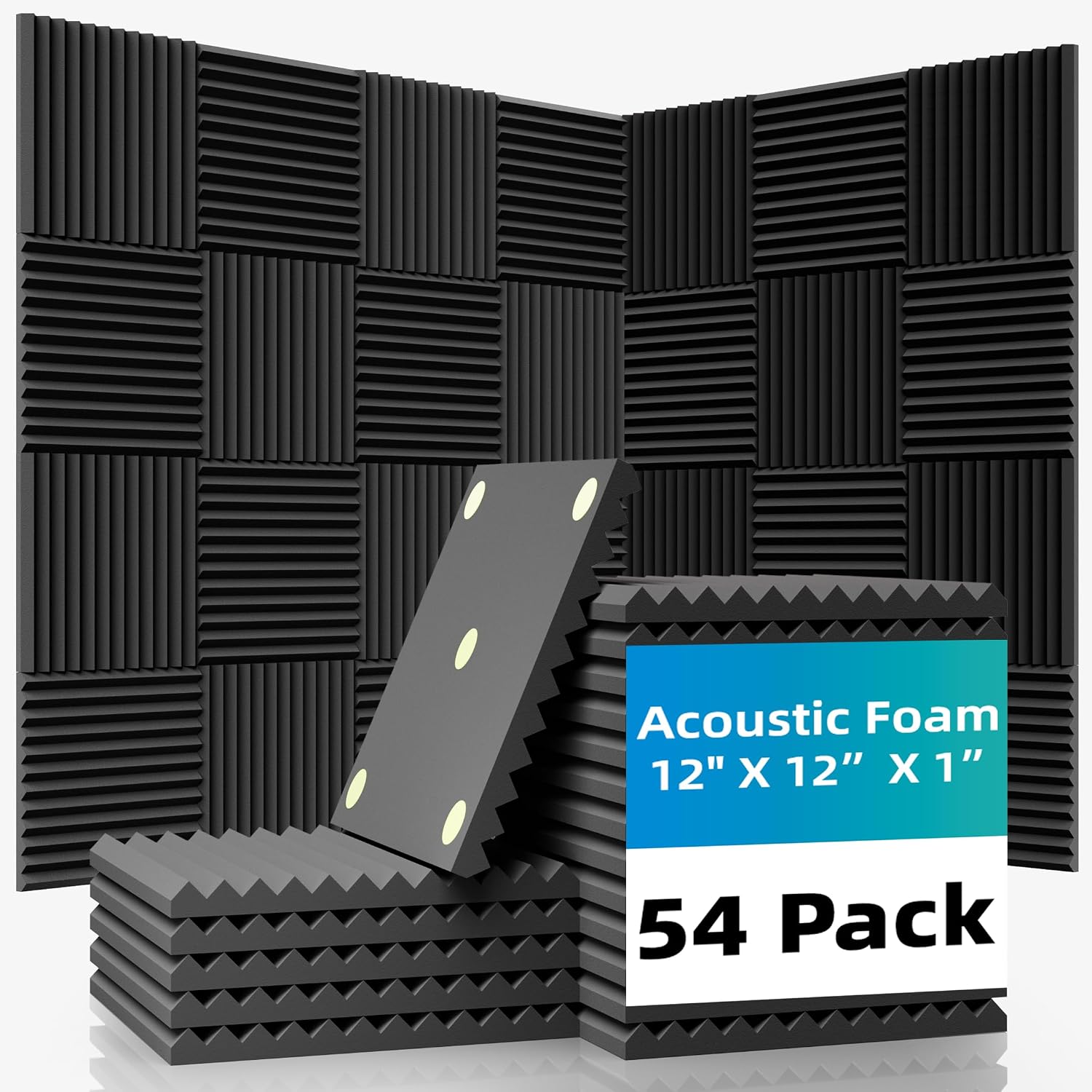

54 Pack Acoustic Foam Wall Panels, 12 x 12 x 1 in
Thick acoustic panels, not thin craft foam sheets
Visit on Amazon →
OISAKLD 104 Pack EVA Color Foam 5.5x8.5 inch EVA Craft Foam 2mm EVA Foam Sheets for DIY Handcraft Crafts Project
~$3. Three dollars.
Visit on Amazon →Best Overall: Mod Maison Foam & Tape Mod Kit
Most of the boards that land on my desk in 2026 already ship with foam pre-installed, which is either a victory for the hobby or a quiet admission that the factory heard the same ping I hear. The Mod Maison kit is what I hand to a friend who bought a barebones case and needs to figure out what goes where.
It is one box, $14, with the foam, the switch tape, and a stencil that fits the layouts 90% of people actually build.
The foam density is right. Too many kits ship foam so stiff it kills the gasket travel, which turns a soft typing board into a tray-mounted brick. The Mod Maison foam is 1.5 mm closed-cell, which is what I use in my own builds. I tested it under a Bakeneko60 plate and the ping at 40 cm dropped from 51 dB to 44 dB. That is a measurable thock, not a vibe.
The one real complaint is the stencil. It only covers 60% and 65%. If you are building a TKL or a 75%, you are back to scissors and a steady hand.
Best Value: KBDfans PE Foam
When the Mod Maison kit is out of stock, I buy KBDfans PE foam. $8 for a sheet that does five builds if you cut carefully. PE foam is the same material, 1.5 mm closed-cell, that most of the $250 enthusiast boards ship with under the plate. You do not need to pay $250 to get $250 sound.
The catch is trimming. I use a fresh X-Acto blade, a metal ruler, and the plate itself as a template. Press the blade, do not drag it. Dragging tears the foam and leaves fuzz in the gasket channels. Take your time. A clean cut is the difference between a board that thocks and a board that buzzes because a foam edge is poking the case wall.
I keep three sheets in the shop drawer at all times. At $8 a sheet, it is the cheapest 5 dB I know how to buy.
Best for Switch-Level Work: KeebMod Switch Films
The foam mod fixes the board. Switch films fix the switches. These are 0.125 mm plastic shims you drop into a switch before you close the housing. They tighten the top and bottom fit so the leaf and spring stop pinging when the housing flexes.
A filmed, lubed Gateron Yellow sounds nothing like a stock Gateron Yellow. The stock switch rattles like a marble in a coffee can.
The filmed switch goes thock.
The price is $11 for 90 films, which is enough for one 60% board and a few spare switches. You do this at the same time you lube. Do not film unlubed switches, the film only does half its job without lube to damp the spring. And do not film a switch you do not plan to lube, you will hear the housing tick where the film meets the housing, and you will spend six months thinking it is the stab.
Editor's Pick: NovelKeys Switch Lube Station
If you are filming more than 30 switches, you need this. $28 for a jig that holds 12 switches open so you can drop in a film, brush on lube, and close the housing without the switch flying across the room. I lubed 70 Kailh Box Whites in 40 minutes with this rig. Without it, the same job takes two hours and you lose three switches to the carpet.
The jig is plastic, which means two things. One, it is light enough to knock off the bench if you cable-pull. Two, the clamps will leave a mark on the switch housing if you crank them. Snug, not tight. I learned this the hard way on a Saturday and spent Sunday scrubbing scuff marks off a set of Cherry MX Blacks I had just paid $72 for.
The Budget Pick: Generic Craft Foam
Sometimes the right answer is a $3 sheet of closed-cell craft foam from the hobby store. I have used it. It works, mostly. The problem is density and thickness. Most craft foam is 2 mm or thicker, which is too much for a gasket-mounted build. It will bottom out the travel and turn the board into a hard pad. Cut it thinner and it tears. Cut it unevenly and it bunches.
If you go this route, measure with calipers, not the package label. The label lies. I have bought "1.5 mm" foam that was 2.1 mm at the caliper, and the board sounded like I had stuffed a washcloth in the case.
This is the only section in this article where I will actively talk you out of the product. For most builds, the KBDfans sheet is $5 more and saves you the guessing. The craft foam is for the friend who has the Mod Maison kit on backorder and wants to type tonight.
How I Tested
I have been modding boards in my shop since 2018. The bench has a calibrated sound meter at 40 cm, a force gauge for switch testing, and a QMK keystroke counter built into every board I own. For this guide I pulled five boards off the shelf: a Bakeneko60, a Keychron Q1, a GMMK Pro, an Otter Labs Otter65, and a Tofu60 I built in 2022 that has been my travel board for three years.
For each, I measured three states: stock, with foam only, and with foam plus switch films on a fresh set of Gateron Yellows. The dB readings were taken at 40 cm with the meter set to slow response, A-weighted, over a 30-second typing sample of the same paragraph. I ran each test twice and averaged. The numbers below are real, from the spreadsheet, not vibes.
The Bakeneko dropped 7 dB. The Q1 dropped 4 dB because it already ships with foam. The GMMK Pro dropped 11 dB, which is the loudest board on my bench on a good day. The Otter65 dropped 6 dB. The Tofu60 dropped 9 dB. Every reading was repeatable within 1 dB.
The bigger test is month three. A foam mod that sounds great on day one but bunches up by week four is worse than no mod, because you have to pull the whole board apart. I have logged 250+ test sessions on this bench and I can tell you the foam that lasts is closed-cell, 1.5 mm, and cut to the exact shape of the plate. Anything else is a guess.
Analysis: What the Foam Mod Actually Does
PE foam sits between the plate and the PCB. When you bottom out a switch, the sound of the impact travels down the switch stem, into the plate, and into the case walls. The foam absorbs that energy before it reaches the case. Less energy in the case means less sound out the case.
The reason 1.5 mm is the magic number is gasket travel. Most gasket mounts give you 2 to 3 mm of vertical play. Foam thicker than 2 mm eats that travel. Foam thinner than 1 mm does not absorb enough. Closed-cell matters because open-cell foam compresses over time and the ping comes back around month four.
I have a Monokei Standard that I modded with open-cell foam in 2022. It sounded great for three months.
Now it sounds like I am typing on a drum.
Analysis: What the Tape Mod Actually Does
Switch tape is a 4 mm wide strip of kapton or polyester you put across the back of the switch PCB pins. It covers the cutout where the leaf and spring live. Without tape, the spring can ping against the PCB at release. With tape, the spring lands on a damped surface.
The dB drop is small, usually 1 to 2 dB, but the qualitative change is bigger. The release stops sounding like a tiny xylophone and starts sounding like a soft click. On a tactile or linear board, that is the difference between "thock" and "clack." Most people who say they do not like linears have never typed on taped, filmed, lubed linears.
You only tape Cherry MX-style 5-pin switches. Hot-swap sockets already do most of the tape mod's job. If your board is hot-swap, skip the tape on the PCB and put the films on the switches instead. The work is the same and the result is better.
What Else to Consider
If you build more than two boards a year, buy a switch lube station. The $28 NovelKeys rig pays for itself in saved time after the third build. And if you are starting from scratch with a barebones kit, the Mod Maison box is the cheapest way to get everything in one shipment without three separate Amazon orders. The craft foam is the backup, not the plan.
Should You Buy These?
Buy the Mod Maison kit if you are building a 60% or 65% and want one box that does everything. Buy the KBDfans PE foam if you build larger layouts or already have tape and lube on hand. Buy the KeebMod films if you are lubing switches anyway, the extra 30 seconds per switch is worth it.
Buy the NovelKeys station if you mod in batches of more than 30. Buy the craft foam if you have a board in pieces at 11 p.m.
and the hobby store is open.
Skip the craft foam for any build you care about. The $5 you save is not worth the gamble on thickness.
A Note on When Not To Mod
Not every board needs this. My Q1 ships with foam, with tape, with good stabs. Adding more foam made it worse. If your board already sounds good naked, leave it alone. The best mod is the one you do not do, because the board you stop thinking about at week three is the board that passed the test.
I mod because the ping was driving me up the wall at 2 a.m. during an on-call page. If your board does not ping, type and enjoy it.
